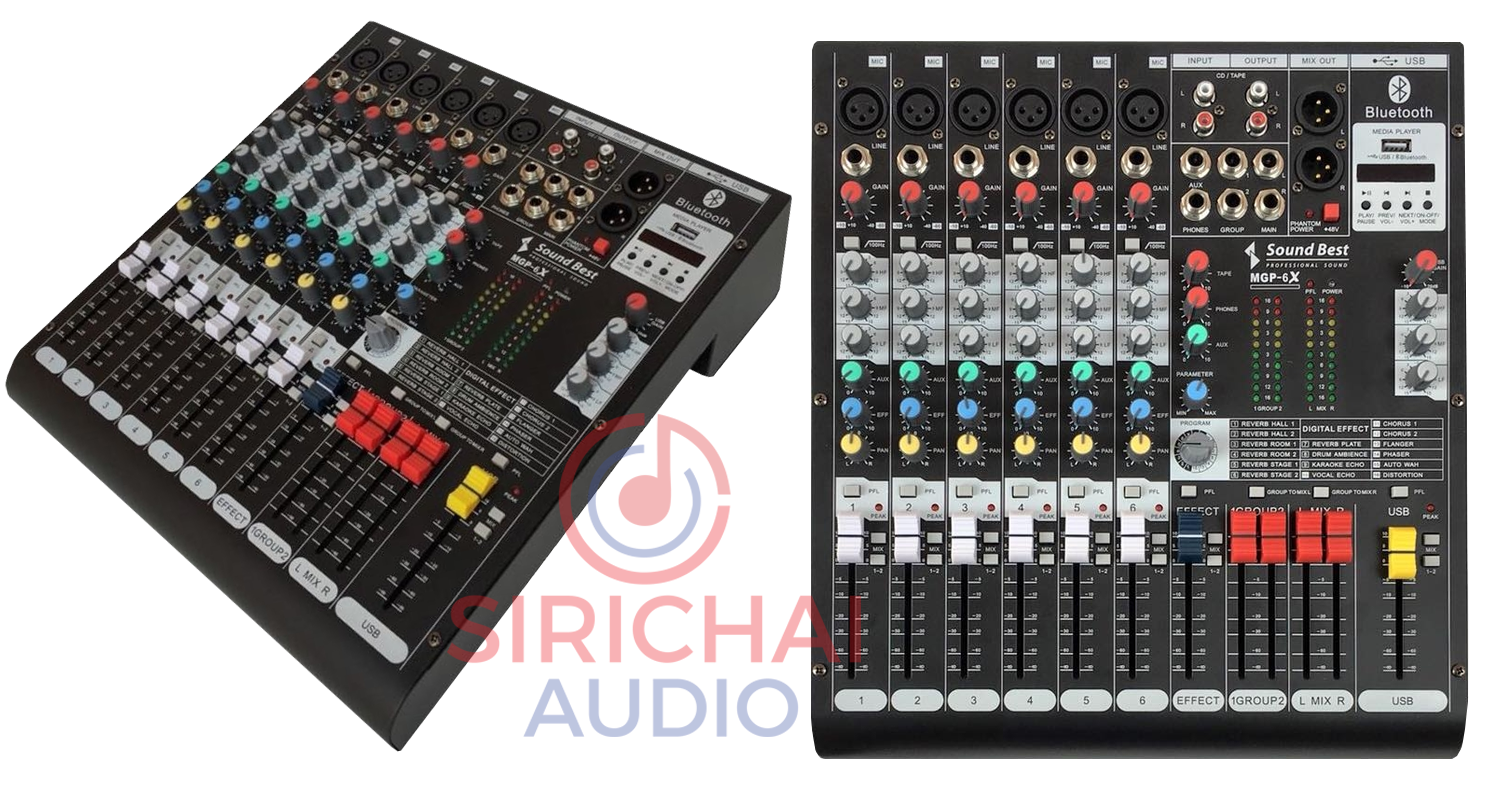

Sound Best รุ่น MGP6X
________________________________________________
SPECIFICATIONS
NOISE
• Messured RMS, 22Hz to 22KHz Bandwidth At Maximum Gain128dB
• Mix Output, 6 inputs routed to mix. faders at unity, muted<8.5dB
• Crosstalk (@ 1 kHz. typical)
• Channels in Mute Mode>96dB
• Foder cut-off (rel. O mark)>96dB
• Aux Sends>86dB
FREQUENCY RESPONSE
• Mic/Line Input To Output20Hz-20kHz (+ /-0.5dB)
Total Harmonic Distortion (T.H.D)
• Microphone Sensitivity30dB
• +20dBu At All Outputs @ 1 kHz<0.007℅
INPUT & OUTPUT IMPEDANCE
• MIC Input2.4k Ohms
• Mono lnput11k Ohms
• Stereo Input100k Ohms
ALL OTHER AUDIO LEVELS
• MIC Input (MAX Level)+17dB
• Mono input (MAX Level)+30dB
• Stereo Input (MAX Level)+30dB
• Headphone Output300mW
• All Other Audio Output+20dB
EQUALIZER
• High Frequency12kHz (+ /-15dB)
• Mid Frequency140Hz 3kHz (+ /-15dB)
• Low Frequency80Hz (+ /-15dB)
• Low Cut (On Mono Inputs)@ 100Hz
