TOA PC-2369
ลำโพงติดเพดาน

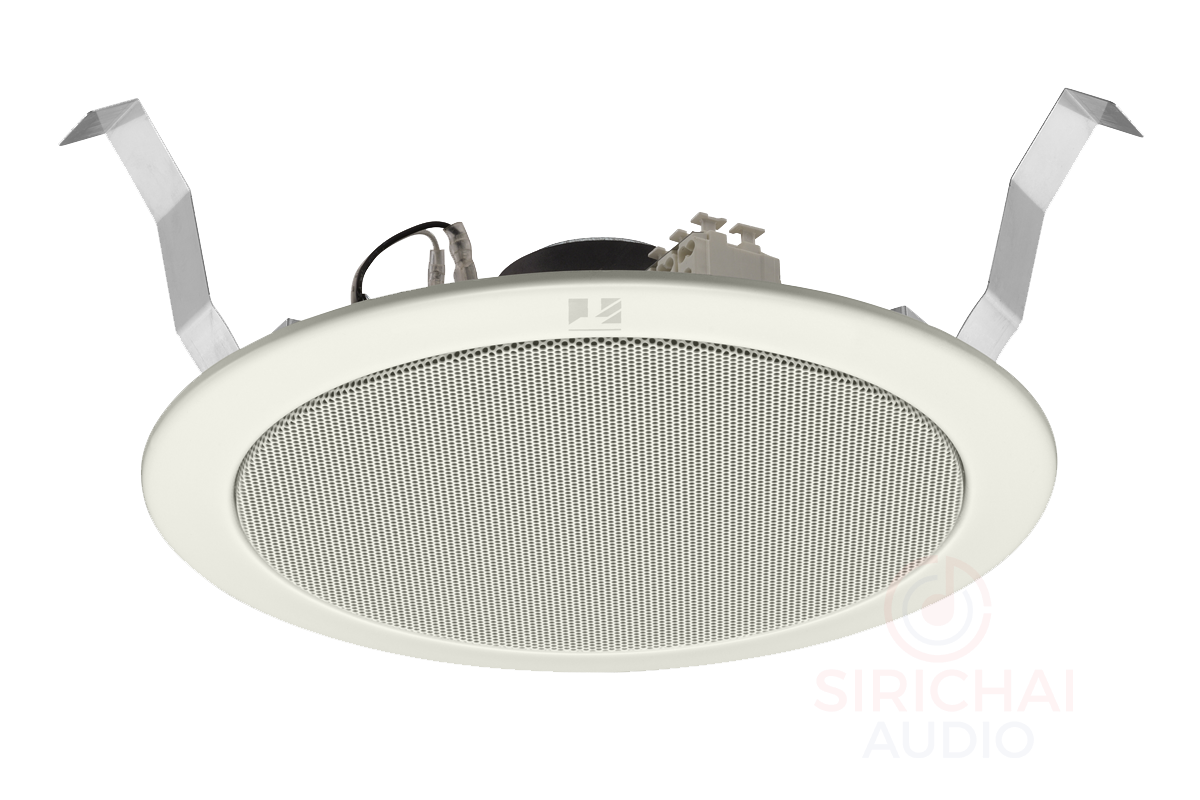

Ceiling Mount Speaker 6W
• 6" (16cm) cone-type speaker
Easy to installation thanks to TOA's original SUS spring-based installation method
Finely crafted design and off-white color harmonize with the venue's architecture and decor.
Specification
Rated Input
6W (100V line) / 3W (70V line)
Rated Impedance
100V line; 1.7k ohms (6W), 3.3k ohms (3W), 6.7k ohms (1.5W),
13k ohms (0.8W)
70V line; 1.7k ohms (3W), 3.3k ohms (1.5W), 6.7k ohms (0.8W),
13k ohms (0.4W)
Frequency Response
45 - 20,000Hz
Speaker Component
6" (16cm) cone-type
Input Terminal
Push-in terminal
Sound Pressure Level
93 dB
Dimensions
ø230 × 79 (D) mm (ø9.06 x 3.11")
Finish
Baffle: Steel Palte, off-white, paint
Grille: Surface-treated steel plate net, off-white, paint
