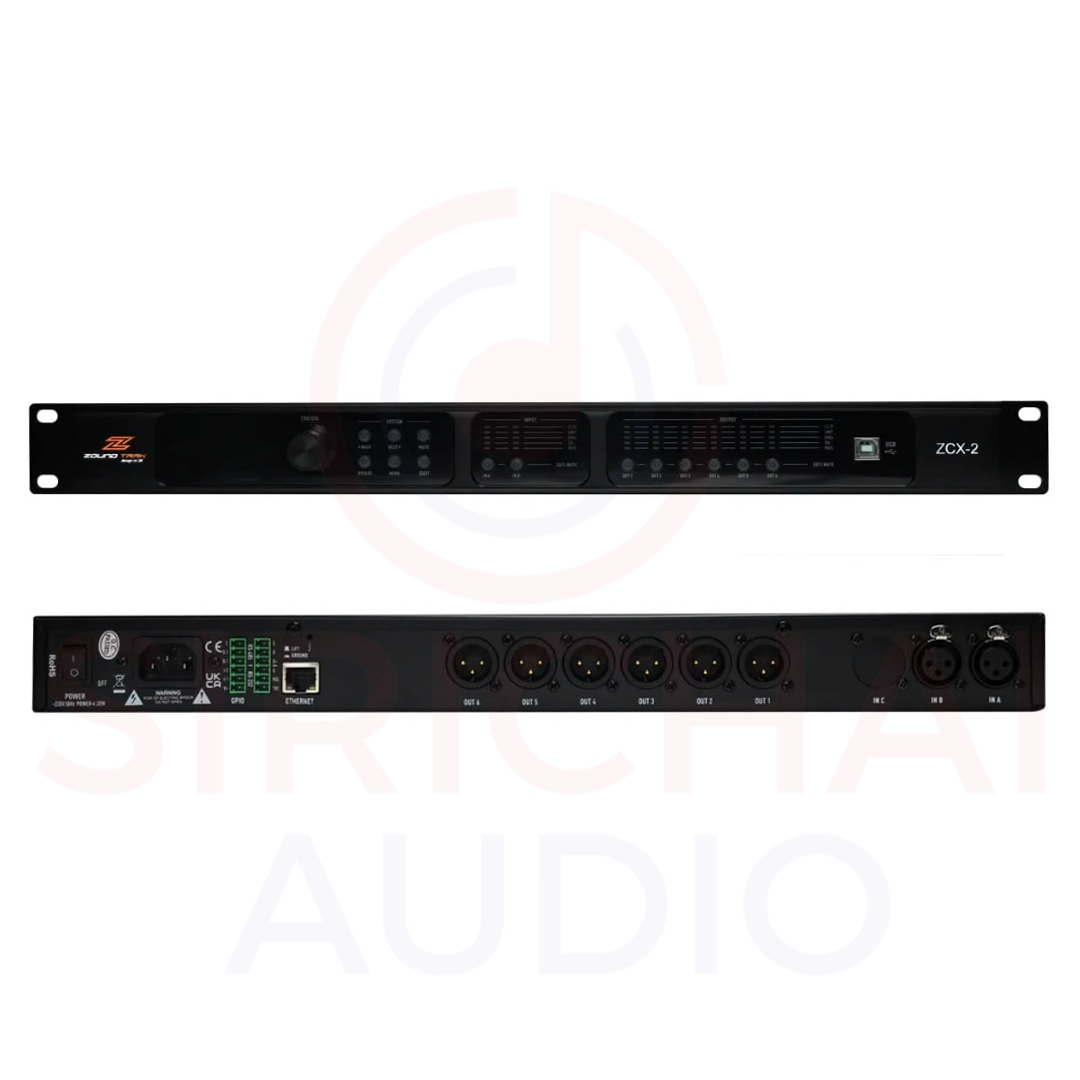

ครอสดิจิตอล ZOUNDTRAK รุ่น ZCX2 และ ZCX4 (design in UK)

ZCX series

- Built-in sine, white noise-splitting signal generator, and could be used as a test signal;

- Input with 3-band dynamic EQ to improve the audio performance;

- Channels link and channels copy function to improve the engineer's efficiency;

- Full port RF protection to protect the safe and reliable operation of the equipment;

-Support for mutiple connection mode, USB, TCP/IP, RS2, RS485 and GPIO port, open protocol for third-party control;

- Support multiple machines networking and joint debugging.

- Support mobile APP wireless control.

- FIR Filter is an optionnal on Output Crossover.

Specification

- Input / Output : 2 in 6 out

- THD+N : <0.003% @1kHz

- S/N : >112 dBA (A-Weighted)

- Frequency response : +0.3dB (20Hz~20kHz)

- AD & DA Converters : 24bit-96kHz

- Max Input/Output Level : +20dB

- Parametric Equalization : Input 10-band, Out 10-band

- Fiter Type : FIR / PEQ / Low-Shelf / HI-Shelf / ALL PASS


_______________________________________________________

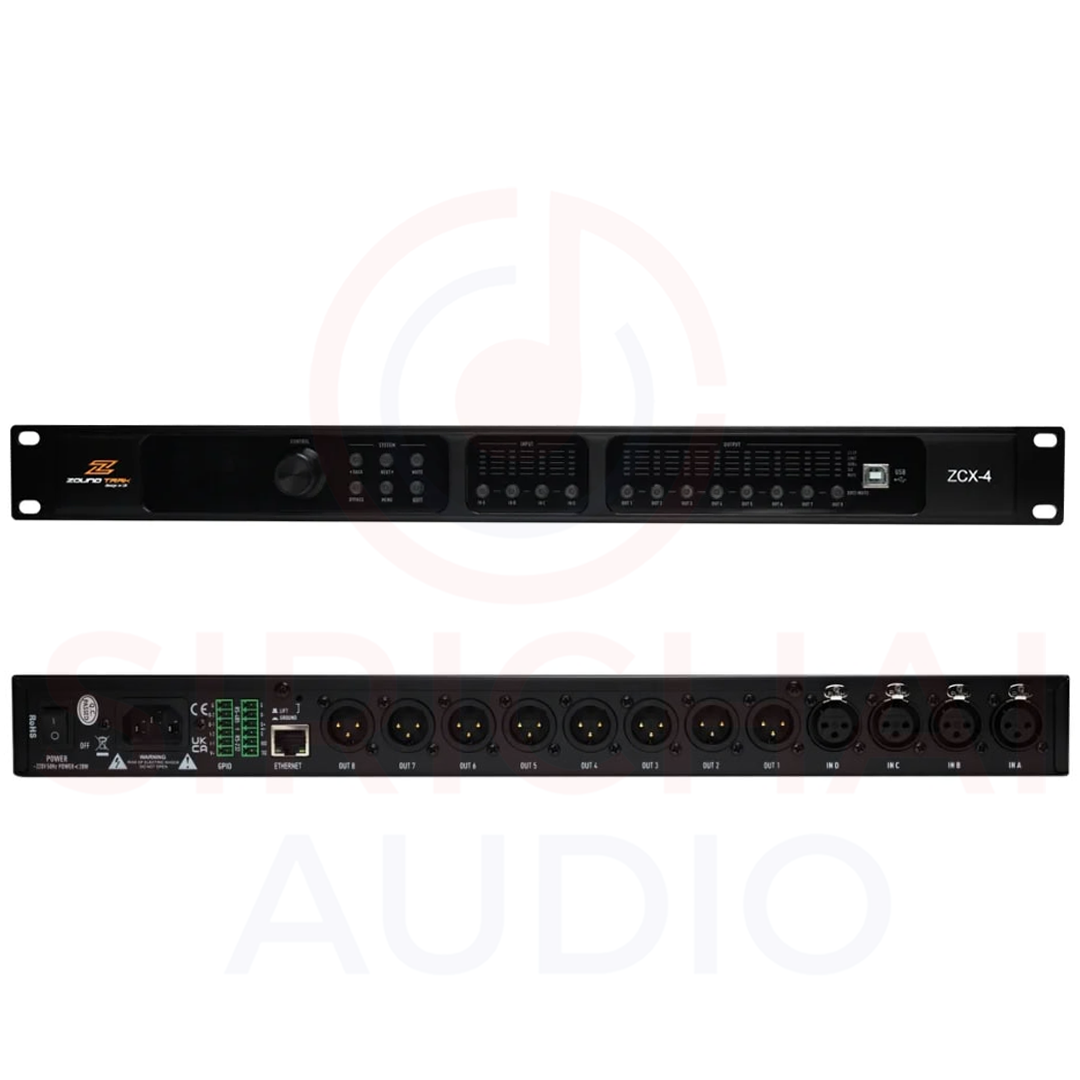

ZCX4

 Specification

- Input / Output : 4 in 8 out

- THD+N : <0.003% @1kHz

- S/N : >112 dBA (A-Weighted)

- Frequency response : +0.3dB (20Hz~20kHz)

- AD & DA Converters : 24bit-96kHz

- Max Input/Output Level : +20dB

- Parametric Equalization : Input 10-band, Output 10-band

- Filter Type : FIR / PEQ Low-Shelf / HI-Shelf / ALL PASS
